Postby cutpriceracing » Thu Jul 03, 2014 2:38 am

Guide Tyre Removal & Installation using the Kart Tire Tool

This guide explains how to easily remove and install tyres using the Kart Tire Tool.

You can also substitute the tool for a lower cost alternative, such as tyre removal bars which can be purchased from most automotive stores. However, in our experience this tool makes such a huge difference to installing and removing tyres that once you've used one, you'll think you were crazing doing it the hard way.

This tool can be operated with low strength and allows virtually anyone to change a tyre.

Using this tool dramatically reduces the time and effort required to remove and mount tyres. You will still require a bead breaker to start the process if you are removing tyres, but a bead breaker is not required to mount them.

TOP TIP - Lubricating your tyres before installing/removing
Wipe a soapy detergent over the both beads of the tyre before trying to slide them over the rim. Soap will give you the lubrication needed but will quickly dry - saving your tyre from sliding back off the rim or rotating under power (this is particularly critical on the rear of the kart). Do not use lubricants such as CRC, Inox, WD40, or grease etc as these items will not dry and will stay lubricated while the wheel is in use, leading to dangerous situations.

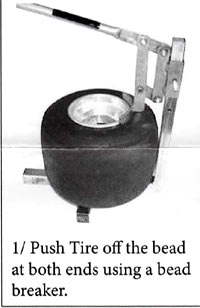

1. Push the tyre off the bead at both ends using a bead breaker

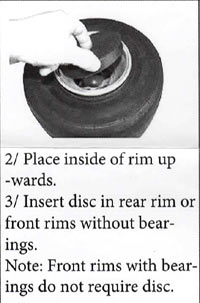

2. Place the wheel on a flat surface with the inside of the wheel facing upwards

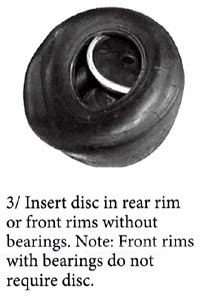

3. Insert the appropriate sized disc into the rear of the rim (NOTE: The disc is not required for this step on FRONT RIMS WITH BEARINGS)

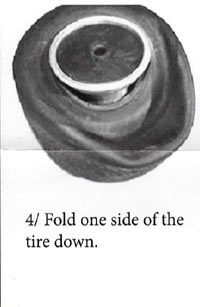

4. Fold one side of the tyre down as shown

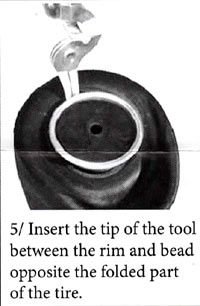

5. Insert the tip of the tool between the rim and bead opposite the folded part of the tye as shown

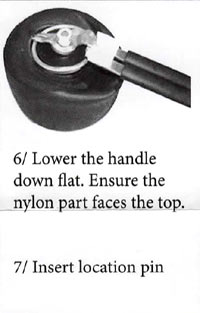

6. Lower the tool with handle down flat, with the white nylon rectangles facing upwards
7. Insert the pin through the tool then through the disc

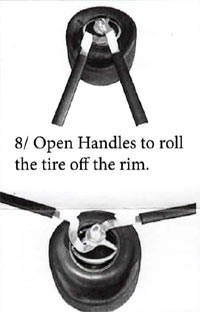

8. Open the handles. The prongs will slowly peel the tyre up over the rim. Continue pulling the handles all the way around until the tyre is completly over the rim.

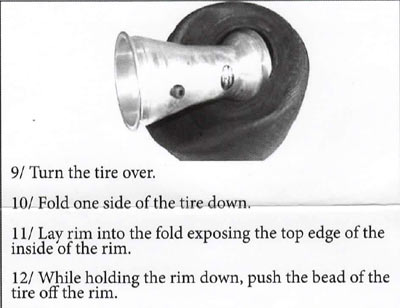

9. Flip the tyre/rim assembly over.
10. Fold one side of the tyre down.
11. Pull and lay the rim over onto the folded down section as shown. Ensure the rim edge shows through the hole in the centre of the tyre. Push and bend the rim down into the fold until you can get your hand through the tyre into the inside rear of the rim.
12. While holding the rim down, push the bead of the tyre off the rim.

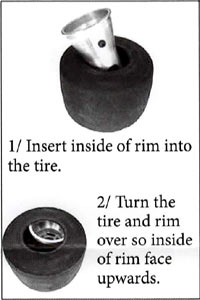

1. Insert the rim into the tyre by the rear/inside first as shown in the top section of the picture below.
2. Turn the tyre and rim over so the inside of the rim faces upwards as shown.

3. Insert the appropriate sized disc into the rear of the rim (NOTE: The disc is not required for this step on FRONT RIMS WITH BEARINGS)

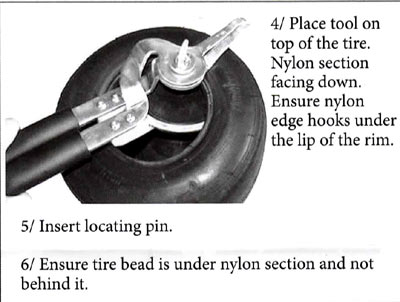

4. Place the tool in top of the tyre and rim assembly, over the disc with the white nylon rectangles hooked in under the lip of the rim.
5. Insert the locating pin
6. Ensure the tyre bead is under the white nylon rectanges - not behind them or they cannot push the bead down over the rim as the handle moves around.

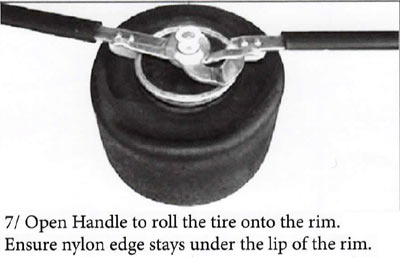

7. Open Handle to roll the tyre onto the rim. Ensure nylon rectangle edge stays under the lip of the rim. Roll the handle around until the bead is completely inside the rim.


Need a bead breaker? You can buy one by clickhng here.

Or after a set of tyre scissors? You can buy one by clicking here.
